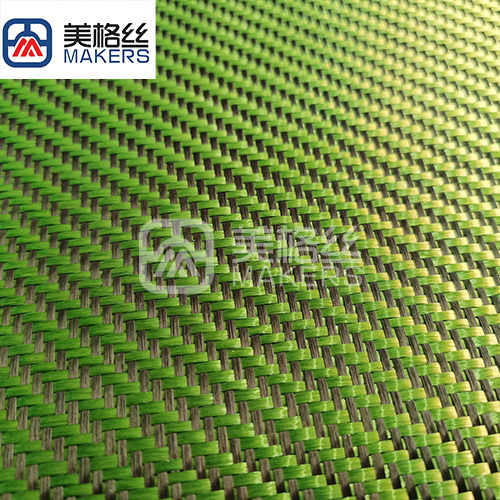

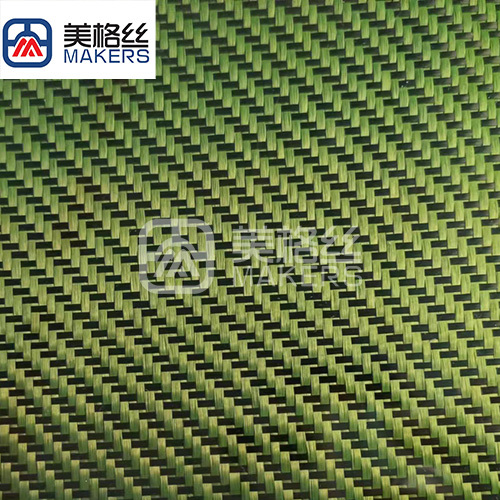

colorful 3K 270gsm fiberglass & carbon fiber fabrics in green

Item No.: 00295
colorful 3K 270gsm  fiberglass carbon fiber fabrics in green
Description Review
Description


China factory carbon fiber fabric cloth ,1K,3K,12K,spread tow, the raw material is from Taiwan,Janpan,USA ,Turkey.According to your requirment to provide the suitable type.
Feature:
Light weight
High strength
High modulus
up to 2000℃ heat resistance
Fatigue resistance
Corrosion resistance
Application:
Aerospace
Wind power
Marine
Automobile decoration
Sports equipment
Medical machine


Carbon fiber Data sheet
Style Weave Weight  g/m2 Fiber Type Fiber Count(10mm) Thickness(mm) Width(mm)
Warp Weft Warp Weft
MKS-1K-120 Plain /  2/2 Twill 120 1K 1K 9 9 0.12 100-1500
MKS-1K-140 Plain /  2/2 Twill 140 1K 1K 10.5 10.5 0.14 100-1500
MKS-3K-160 Plain /  2/2 Twill 160 3K 3K 4 4 0.16 100-1500
MKS-3K-P180 Plain /  2/2 Twill 180 3K 3K 4.5 4.5 0.16 100-1500
MKS-3K-200 Plain /  2/2 Twill 200 3K 3K 5 5 0.2 100-1500
MKS-3K-220 Plain /  2/2 Twill 220 3K 3K 6 6 0.22 100-1500
MKS-3K-240 Plain /  2/2 Twill 240 3K 3K 6 6 0.24 100-1500
MKS-3K-280 Plain /  2/2 Twill 280 3K 3K 7 7 0.26 100-1500
MKS-6K-320 Plain /  2/2 Twill 320 6K 6K 4 4 0.32 100-1500
MKS-6K-360 Plain /  2/2 Twill 360 6K 6K 4.5 4.5 0.36 100-1500
MKS-12K-320 Plain /  2/2 Twill 320 12K 12K 2 2 0.32 100-1500
MKS-12K-400 Plain /  2/2 Twill 400 12K 12K 2.5 2.5 0.4 100-1500
MKS-12K-480 Plain /  2/2 Twill 480 12K 12K 3 3 0.48 100-1500
MKS-12K-560 Plain /  2/2 Twill 560 12K 12K 3.5 3.5 0.56 100-1500
