12K 200gsm twill spread tow carbon fiber fabric for automobile cell width-8*8mm

Item No.: 00292

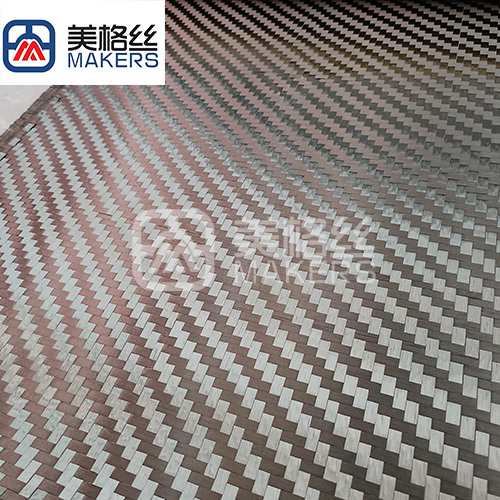

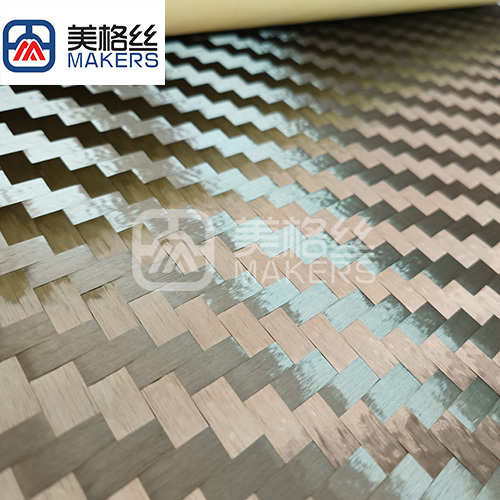

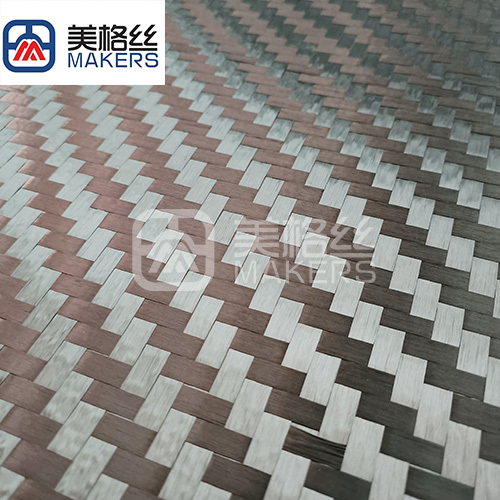

12K 200gsm twill spread tow carbon fiber fabric for automobile cell width-8*8mm
Description Review
Description


China factory carbon fiber fabric cloth ,1K,3K,12K,spread tow, the raw material is from Taiwan,Janpan,USA ,Turkey.According to your requirment to provide the suitable type.
Feature:
Light weight
High strength
High modulus
up to 2000℃ heat resistance
Fatigue resistance
Corrosion resistance
Application:
Aerospace
Wind power
Marine
Automobile decoration
Sports equipment
Medical machine


Carbon fiber Data sheet
Style Weave Weight  g/m2 Fiber Type Fiber Count(10mm) Thickness(mm) Width(mm)
Warp Weft Warp Weft
MKS-1K-120 Plain /  2/2 Twill 120 1K 1K 9 9 0.12 100-1500
MKS-1K-140 Plain /  2/2 Twill 140 1K 1K 10.5 10.5 0.14 100-1500
MKS-3K-160 Plain /  2/2 Twill 160 3K 3K 4 4 0.16 100-1500
MKS-3K-P180 Plain /  2/2 Twill 180 3K 3K 4.5 4.5 0.16 100-1500
MKS-3K-200 Plain /  2/2 Twill 200 3K 3K 5 5 0.2 100-1500
MKS-3K-220 Plain /  2/2 Twill 220 3K 3K 6 6 0.22 100-1500
MKS-3K-240 Plain /  2/2 Twill 240 3K 3K 6 6 0.24 100-1500
MKS-3K-280 Plain /  2/2 Twill 280 3K 3K 7 7 0.26 100-1500
MKS-6K-320 Plain /  2/2 Twill 320 6K 6K 4 4 0.32 100-1500
MKS-6K-360 Plain /  2/2 Twill 360 6K 6K 4.5 4.5 0.36 100-1500
MKS-12K-320 Plain /  2/2 Twill 320 12K 12K 2 2 0.32 100-1500
MKS-12K-400 Plain /  2/2 Twill 400 12K 12K 2.5 2.5 0.4 100-1500
MKS-12K-480 Plain /  2/2 Twill 480 12K 12K 3 3 0.48 100-1500
MKS-12K-560 Plain /  2/2 Twill 560 12K 12K 3.5 3.5 0.56 100-1500
