E-glass fiberglass fabric is an engineering material, which has the excellent merit such as anti-burns, anti-corrosion, stable-size, heat-isolation, minimu.m elongated shrinkage, high intensity, this new material product has already covered many domains such as electric appliances, electronic, transportation, chemical engineering, architectural engineering, heat insulation, sound absorption, fire prevention and environmental protection, etc

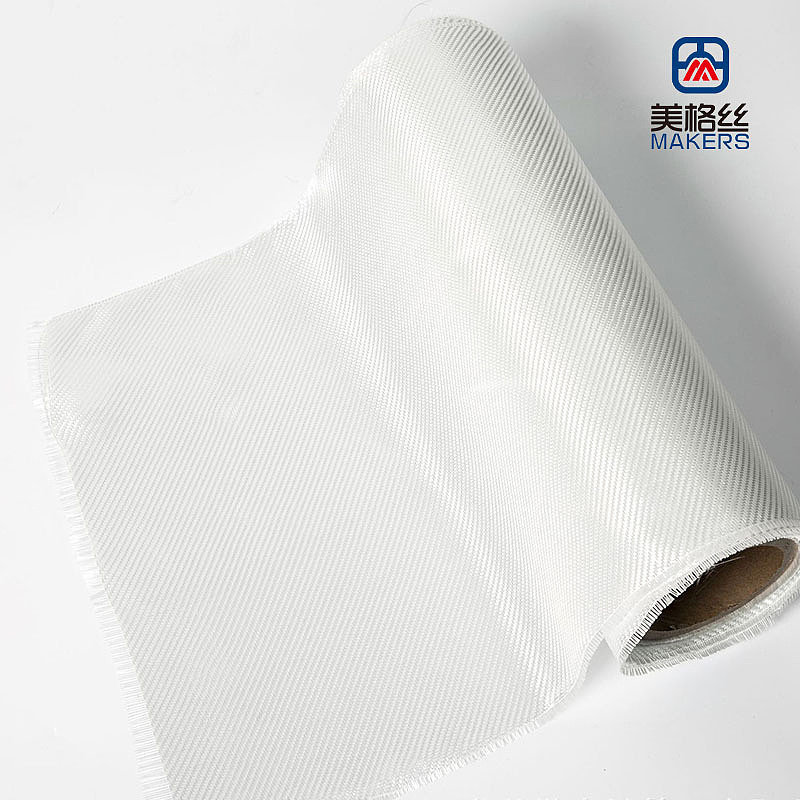

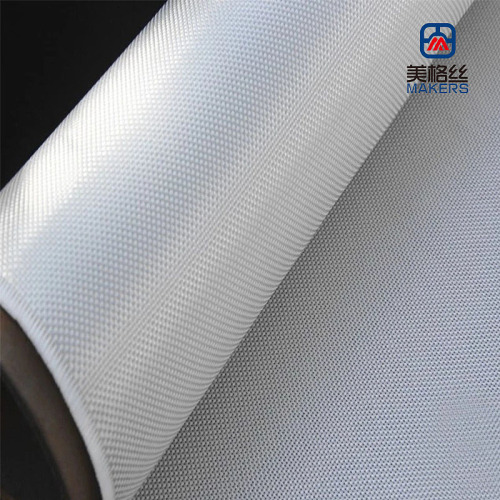

E-glass fiber cloth
1.Glass Type:E-Fiberglass
2.Model:EW
3.Weave:Plain Woven
4.Width:1000mm,1010mm
5.weight:25-300g/m2
1.High intensity and quick wet out
2.Perfect designable character
3.Anti-corrosion and electric insulation
| Technical Specification | |||||||||
| Type | Weave | Density(yarns/cm) | Weight | Tensile strength | Warp | Weft | Diameter | ||
| (g/㎡） | （N/25mm） | （μm） | |||||||
| EW100 | Plain | 16±1 | 15±1 | 110±10 | ≥400 | ≥400 | 33 | 33 | 9 |
| EWT100 | Twill | 16±1 | 15±1 | 110±10 | ≥400 | ≥400 | 33 | 33 | 9 |
| EW130 | Plain | 10±1 | 10±1 | 130±10 | ≥600 | ≥600 | 66 | 66 | 9 |
| EW160 | Plain | 12±1 | 12±1 | 160±12 | ≥700 | ≥650 | 66 | 66 | 9 |
| EWT160 | Twill | 12±1 | 12±1 | 160±12 | ≥700 | ≥650 | 66 | 66 | 9 |
| EW200 | Plain | 8±0.5 | 7±0.5 | 198±14 | ≥700 | ≥650 | 132 | 132 | 9 |
| EW200 | Plain | 16±1 | 13±1 | 200±20 | ≥900 | ≥700 | 66 | 66 | 9 |
| EWT200 | Twill | 16±1 | 13±1 | 200±20 | ≥900 | ≥700 | 66 | 66 | 9 |
| EW300 | Plain | 8±0.5 | 7±0.5 | 300±24 | ≥1000 | ≥800 | 200 | 200 | 13 |
| EWT300 | Twill | 8±0.5 | 7±0.5 | 300±24 | ≥1000 | ≥800 | 200 | 200 | 13 |
| EW400 | Plain | 8±0.5 | 7±0.5 | 400±32 | ≥1200 | ≥1100 | 264 | 264 | 13 |
| EWT400 | Twill | 8±0.5 | 7±0.5 | 400±32 | ≥1200 | ≥1100 | 264 | 264 | 13 |
| EWT400 | Twill | 6±0.5 | 6±0.5 | 400±32 | ≥1200 | ≥1100 | 264 | 264 | 13 |
