Product Description

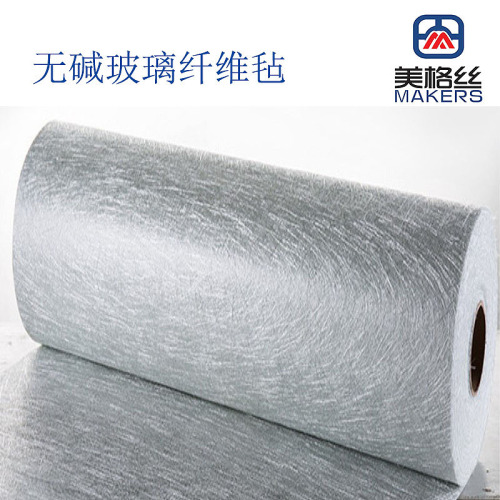

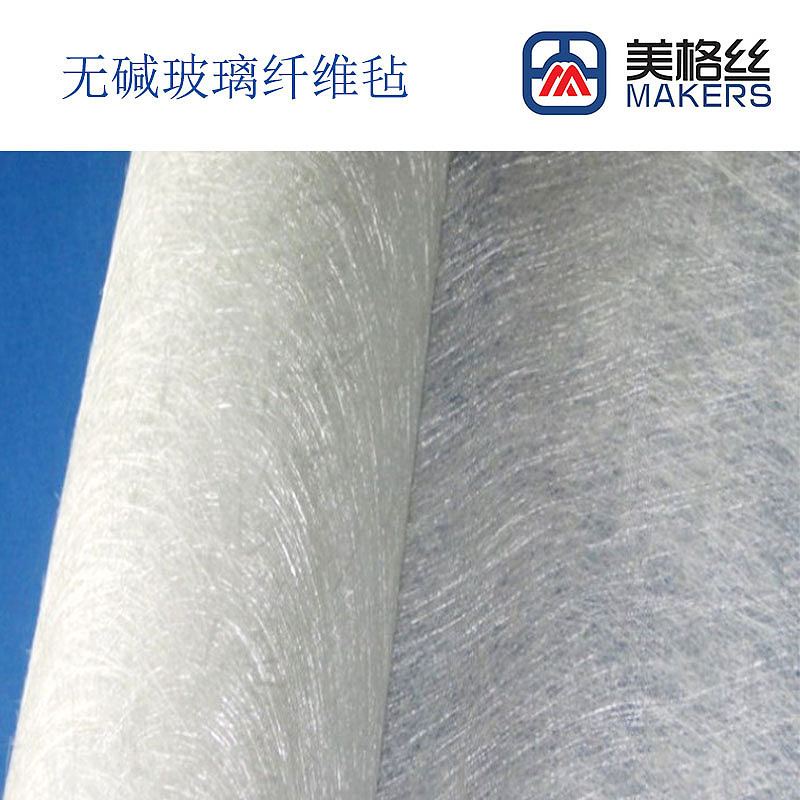

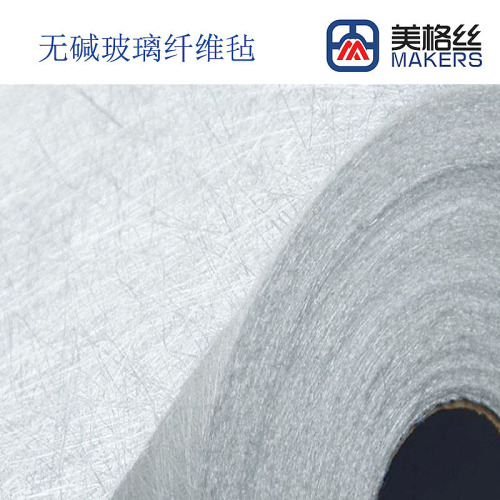

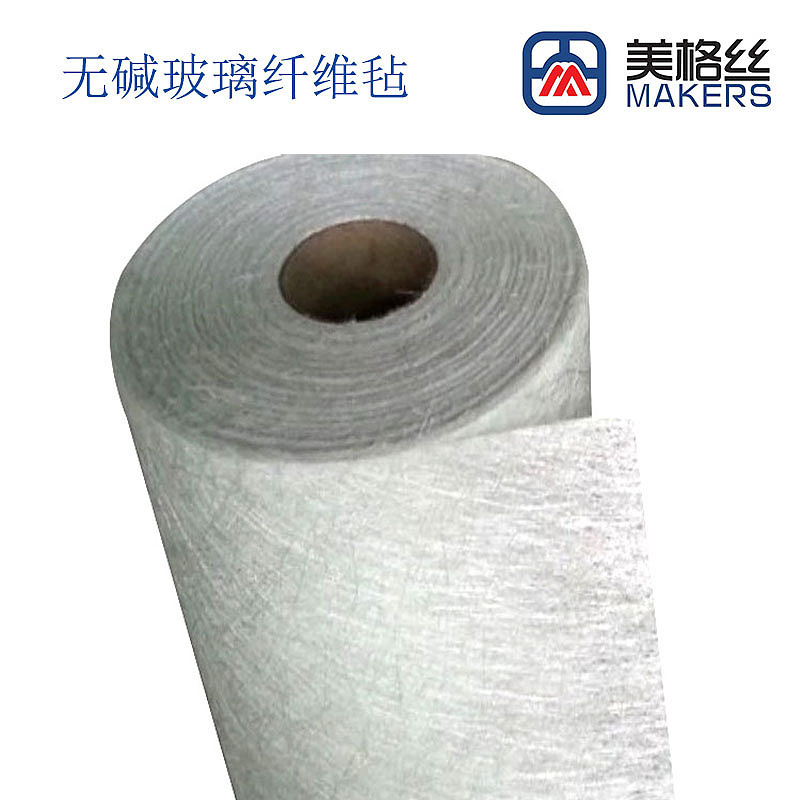

Fiberglass chopped strand mat, briefly as CSM, is a kind of reinforcing product that made from continuous fiberglass strand, which is chopped into a certain length, distributed in an random and non-directional position and bonded with binders. It is suitable for hand lay-up, mold press, filament winding and mechanical forming etc., such as GRP processes.
The main products include kinds of panels, boats, sanitary ware, water tank, anticorrosive engineering products, storge tank, automobile parts and cooling towers etc.
Product Features
1. Uniform thickness, softness and hardness good.
2. Good compatibility with resin, easy completely wet-out.
3. Fast and consistent wet-out speed in resins and good manufacturability.
4. Good mechanical properties, easy cutting.
5. Good cover mold, suitable for modeling complex shapes.
Product Usage
The mats are compatible with unsaturated polyester, vinyl ester and other various resins.
It’s mainly used in hand lay-up, filament winding and compression molding processes. The typical FRP products are panels, tanks, boats, complete set of sanitary equipment, automotive parts, cooling towers, pipes etc.
Specification
|
Item |
Standard weight(g/m2) |
Width(mm) |
Loss on ignition (%) |
Moisture (%) |
Compatible resins |
|
EMC300 |
300 |
1040/1270/2080 ≤3300 |
2-6 |
≤0.2 |
UP VE |
|
EMC450 |
450 |
1040/1270/2080 ≤3300 |
2-6 |
≤0.2 |
UP VE |
|
EMC600 |
600 |
1040/1270/2080 ≤3300 |
2-6 |
≤0.2 |
UP VE |
