PRODUCT PARAMETERS

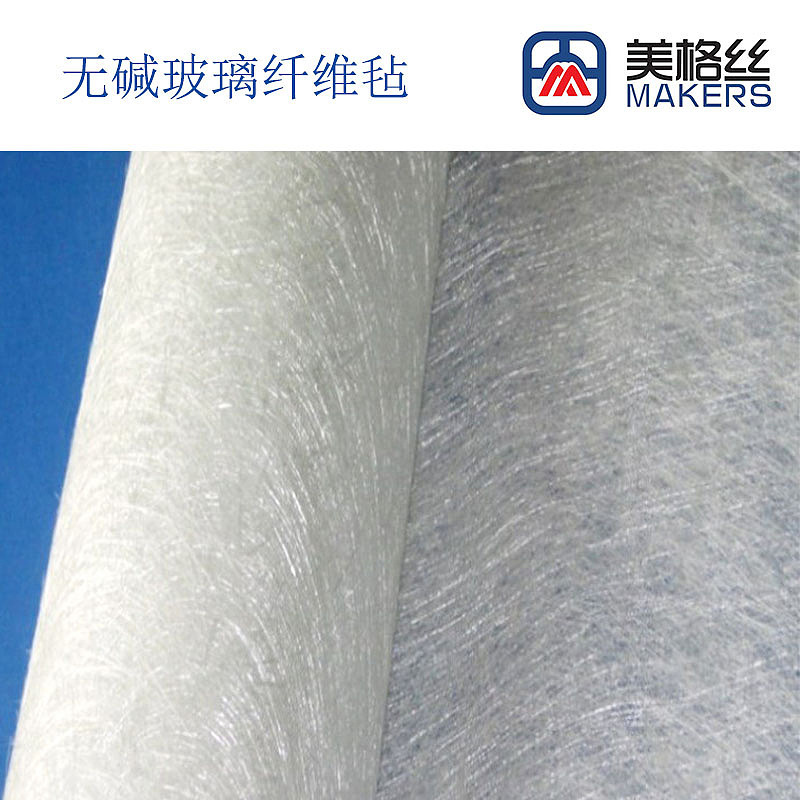

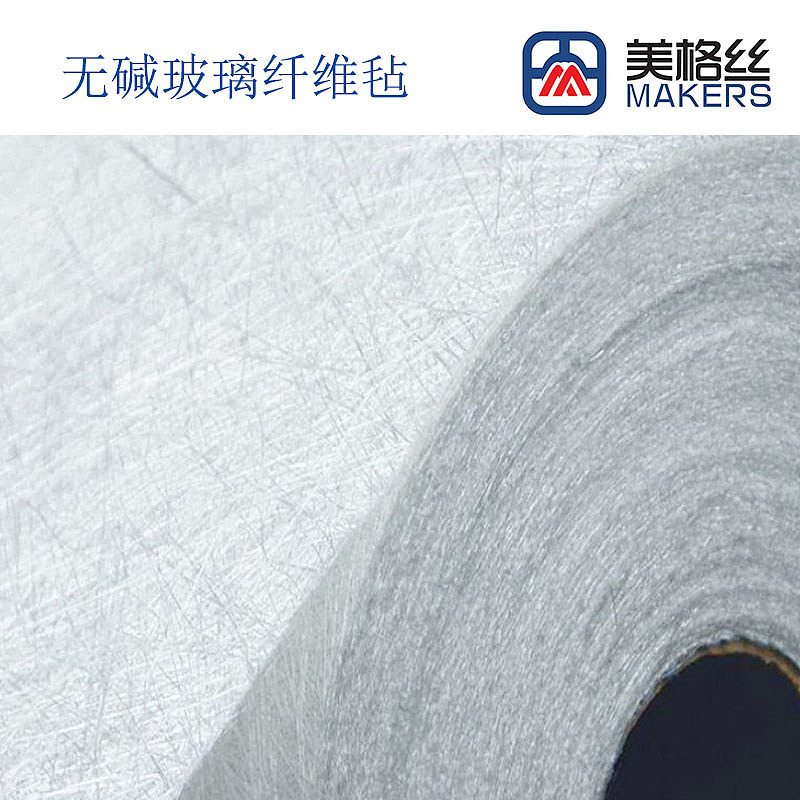

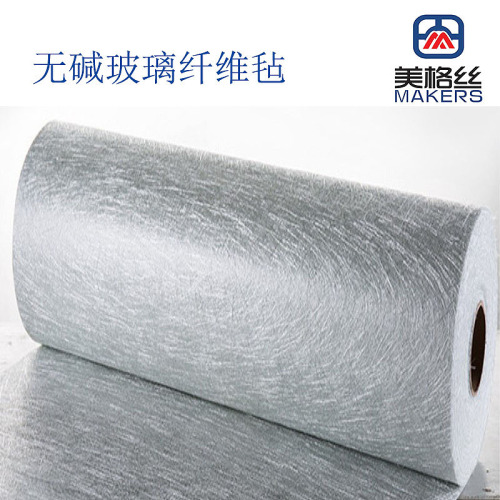

The area weight of choppe.d strand mat is from 100gsm to 600gsm, the binder including powder or emulsion form, trimmed at the two edges. The mats are compatible with unsaturated polyester, vinyl ester and PU resins, the min width is 50mm, the max width is 3000mm.
CSM is mainly used in hand lay-up, filament winding and compression molding processes. The typical FRP products are panels, tanks, boats, complete set of sanitary equipment, automotive parts, cooling towers, pipes etc.
SPECIFICATION
|
Weight(g/m2) | Binder Content(%) |
|
|||
| EMC100 | 100 | 9-12 | <0.2 | |||
| EMC150 | 150 | 9-12 | <0.2 | |||
| EMC225 | 225 | 2-8 | <0.2 | |||
| EMC300 | 300 | 2-8 | <0.2 | |||
|
450 | 2-8 | <0.2 | |||
| EMC600 | 600 | 2-8 | <0.2 |
