PRODUCT PARAMETERS

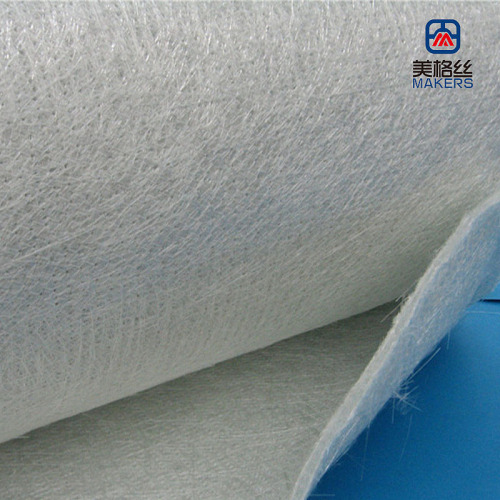

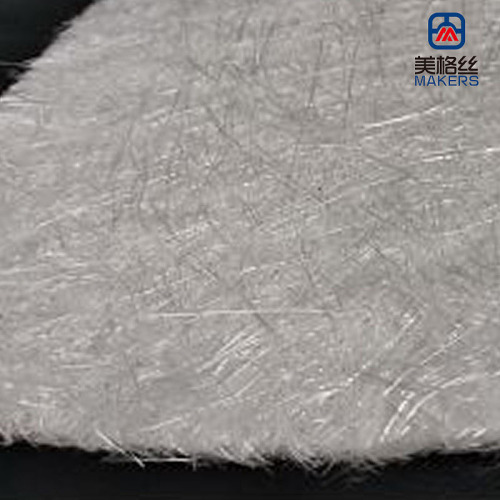

Fiberglass sandwich mat called Flow Mat as well, made with polypropylene non-woven core and choppe.d strand stitched together mechanically, 2 layers of 300gsm choppe.d strand mat with 250g/m2 PP core, it is used for all the closed mold process needs and helps improve productivity and quality. Easy flow core for rapid wet-out and mold filling.
To reinforce polyester resin and polyurethane resin.
The weight of PP is 180GSM and 250GSM.
The application: Bus roofing, wind blade, boat, truck bodies windmill and so on.
Properties
No binder,no warp and weft direction corssing,no ruffled.
No displacement deformation.Good resistance to erosion,fast wet out.
Fast resin transfer speed,good manufacturability,good workability.
Good physical and chemical properties,and easy design to solution.
Technical Data
| Product Code |
CS (g/m 2 ) |
Core (g/m 2 ) |
CS (g/m 2 ) |
Total Weight (g/m 2 ) |
| M300/P180/M300 | 300 | 180 | 300 | 780 |
| M450/P180/M450 | 450 | 180 | 450 | 1080 |
| M600/P180/M600 | 600 | 180 | 600 | 1380 |
| M300/P250/M300 | 300 | 180 | -- | 480 |
| M450/P250/M450 | 450 | 180 | -- | 630 |
| M600/P250/M600 | 600 | 180 | -- | 780 |
