Product Description

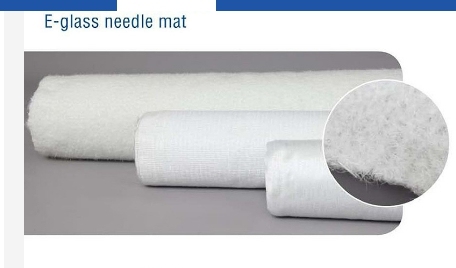

Fiberglass needled mat comprised of high purity E-Glass fibers. Chopping in 3cm-8cm fiber by guillotine machine. And then puffed, carded and continuously needled by thousands special needles. Fiberglass needled mat comprised of inorganic E-Glass fibers. It mainly contains siliceous alumina and calcium oxide. Has excellent quality on heat insulation efficiency, obdurability, fireproofing, non-corrosiveness. Specially excellent in electrical insulation. Fiberglass needled mat needled by e-glass. The resulting product has large number of minute air spaces and excellent sound absorption.
Application
l Fiberglass needled mat was immerged into resin and in shape of board. Can be applied to heat and sound insulation for building, Gaskets for air conditioning.
l Fiberglass needled mat faced aluminum foil or plastic cloth and made in shape of belt. Has good performance on heat insulation and protection for heat & cold pipeline, undergroun.d pipeline.
l Fiberglass needled mat has excellent performance on heat insulation efficiency, obdurability, fireproofling, noncorrosiveness. It can be applied to automotive catalytic converter, Marine industrial, boiler, also suitable to home appliances. It can replace asbestos product.
Specification
|
Thickness (mm) |
Width (mm) |
Density (kg/m3) |
Weight (g/m2) |
Length (m) |
|
2 |
1000-2600 |
100 |
200 |
40 |
|
3 |
1000-2600 |
120 |
360 |
40 |
|
4 |
1000-2600 |
130 |
520 |
40 |
|
5 |
1000-2600 |
140 |
700 |
30 |
|
6 |
1000-2600 |
140 |
840 |
30 |
|
8 |
1000-2600 |
140 |
1120 |
20 |
|
10 |
1000-2600 |
150 |
1500 |
20 |
|
12 |
1000-2600 |
150 |
1800 |
20 |
|
15 |
1000-2600 |
160 |
2400 |
15 |
|
20 |
1000-2600 |
140-170 |
3200-4000 |
10 |
|
25 |
1000-2600 |
150-180 |
4500-5000 |
10 |
*Specific products could be made according to customers’requirements.
